Description

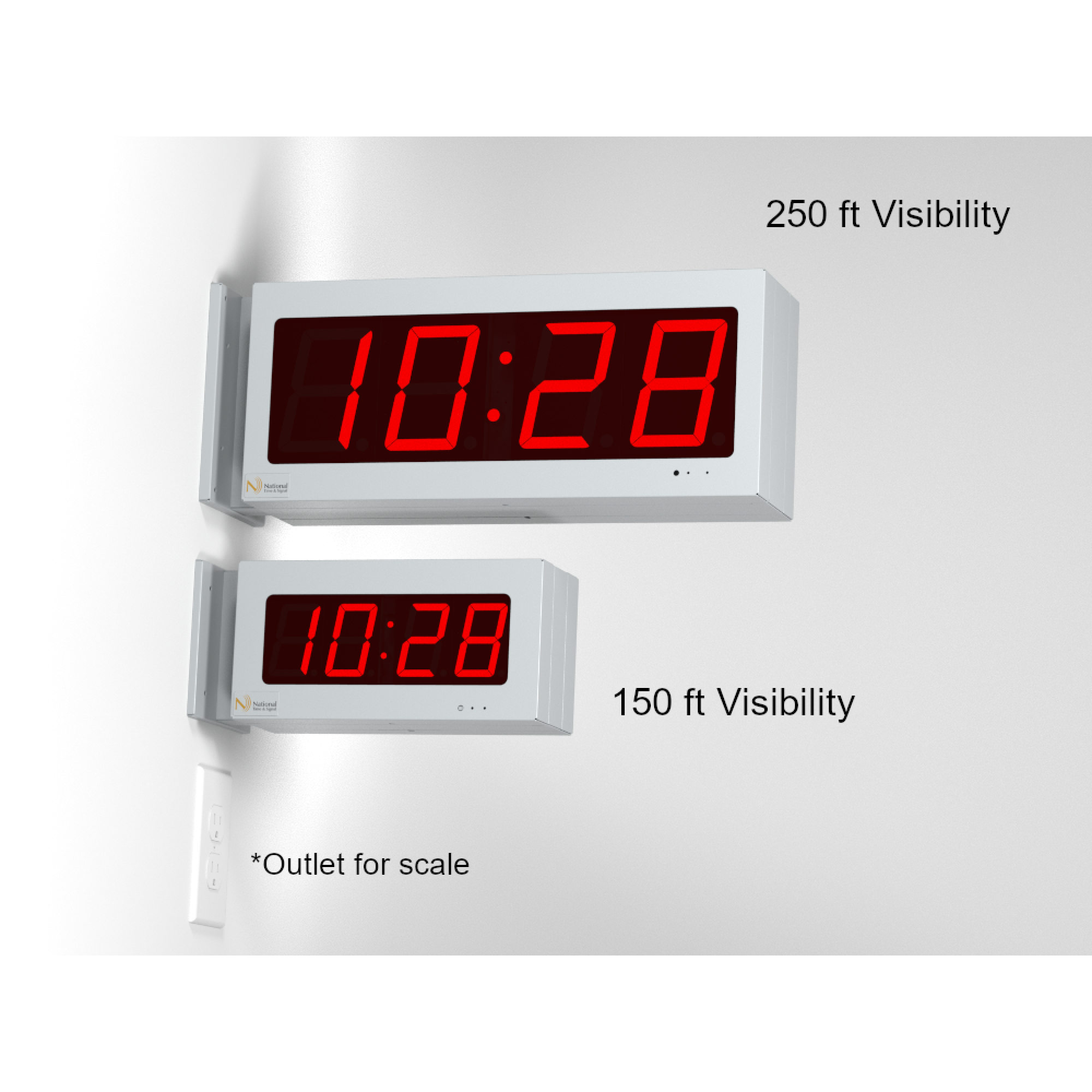

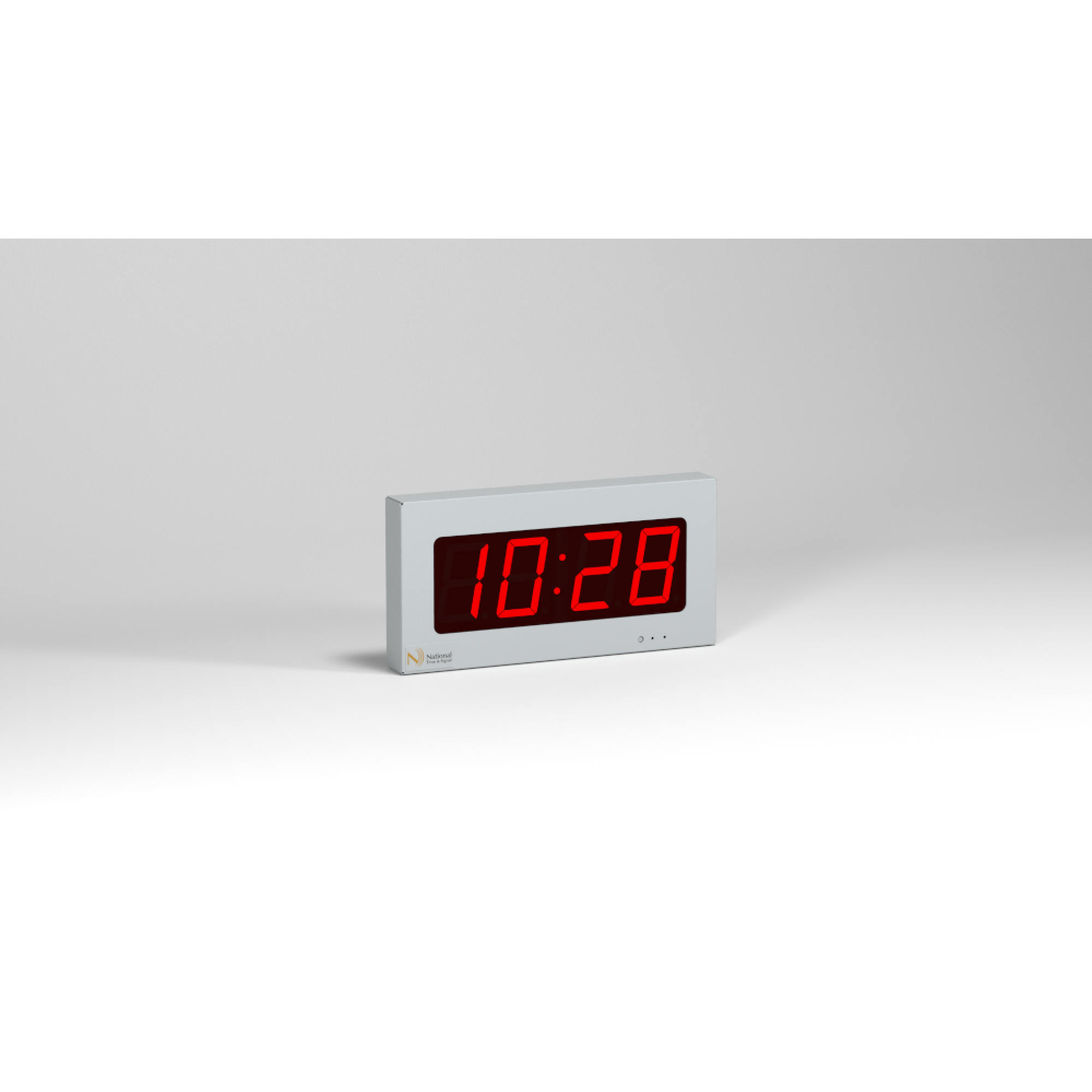

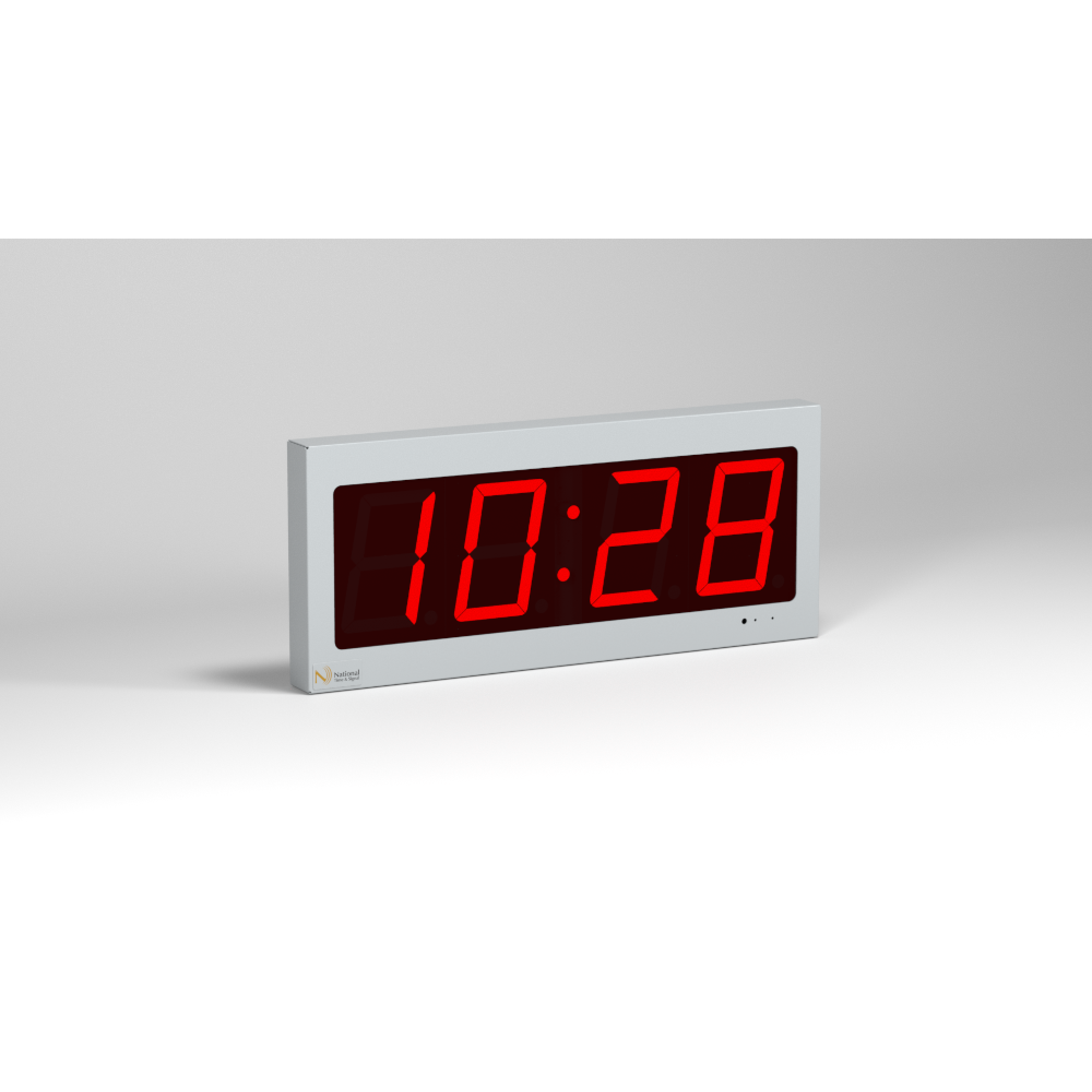

The DX Series includes field selectable features such as 9 brightness levels, exclusive Architectural Auto-Dim, 12/24 hour display format, 50/60Hz power selection, and time setting buttons for stand-alone operation. Available in wide-bar 2.25" and 4" versions.

Correction Formats Supported

• 2-Wire: On Demand Correction: When used with National Time Master Clocks, clocks can correct to any time of day.
• 12 Hour Reset: An ‘off’ pulse (0.5 sec. minimum) at each 12:00 will reset all clocks. 24hr Clocks reset at 12:00am.
• Stand-Alone Operation: Time set using push-buttons. Battery-less backup timekeeping for at least 10 days.

Features

• On-Demand Instant Correction
• 2-Wire Operation
• Aesthetic, Architectural Auto-Dim Feature
• 9 Brightness Levels
• 12/24-hr Display Format
• Stand-Alone Operation
• Accurate 60hz Timekeeping
• Industry's Lowest Power Consumption
• Long-Life Sealed Display
• Durable Steel Housing
• Plug-in Connectors
• Made in the U.S.A.

More Details

Being ecologically friendly does not mean you have to sacrifice features. National Time is proud to introduce the industry’s lowest power consuming digital clock with features beyond those of other manufacturers. Having the industry’s lowest power consumption means more clocks can be powered from a single power supply, longer wire distances and less expensive smaller wire gauges. Compare competitor’s currents at 12 to 15 times our current! This adds up to savings to the installer as well as the owner with lower operating costs.

This new microprocessor based secondary clock and the National Time Master Clocks form a unique time keeping system offering on demand time correction. This digital communication format can provide power and instantly correct all secondary clocks to any time of day using only two conductor low voltage wire. For systems not utilizing National Time’s Master Clocks, 12-hour resets may be accomplished with a short power interruption each 12:00.

12 hour or 24 hour time format is selectable at each clock. Stand-alone operation without a master clock is also made possible using the included time setting buttons. A battery-less backup timekeeping circuit is capable of surviving power outages over 10 days.

This premium series also offers National Time’s exclusive automatic dim feature that decreases the brightness to compensate for low ambient light levels associated with artistic and video productions. This not only provides a pleasant brightness level, but also saves energy during nighttime hours. Nine brightness levels may be selected to satisfy the brightest locations.  

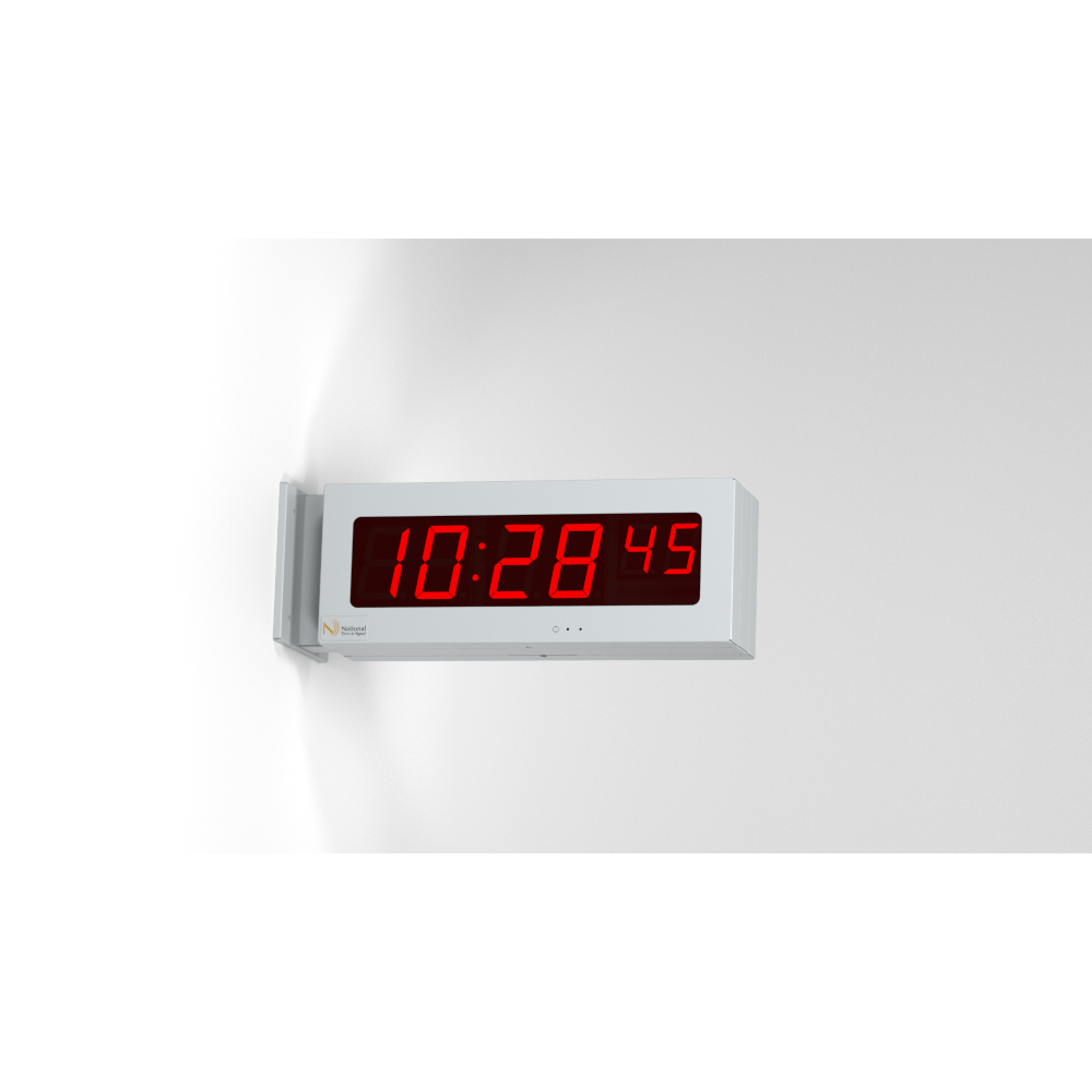

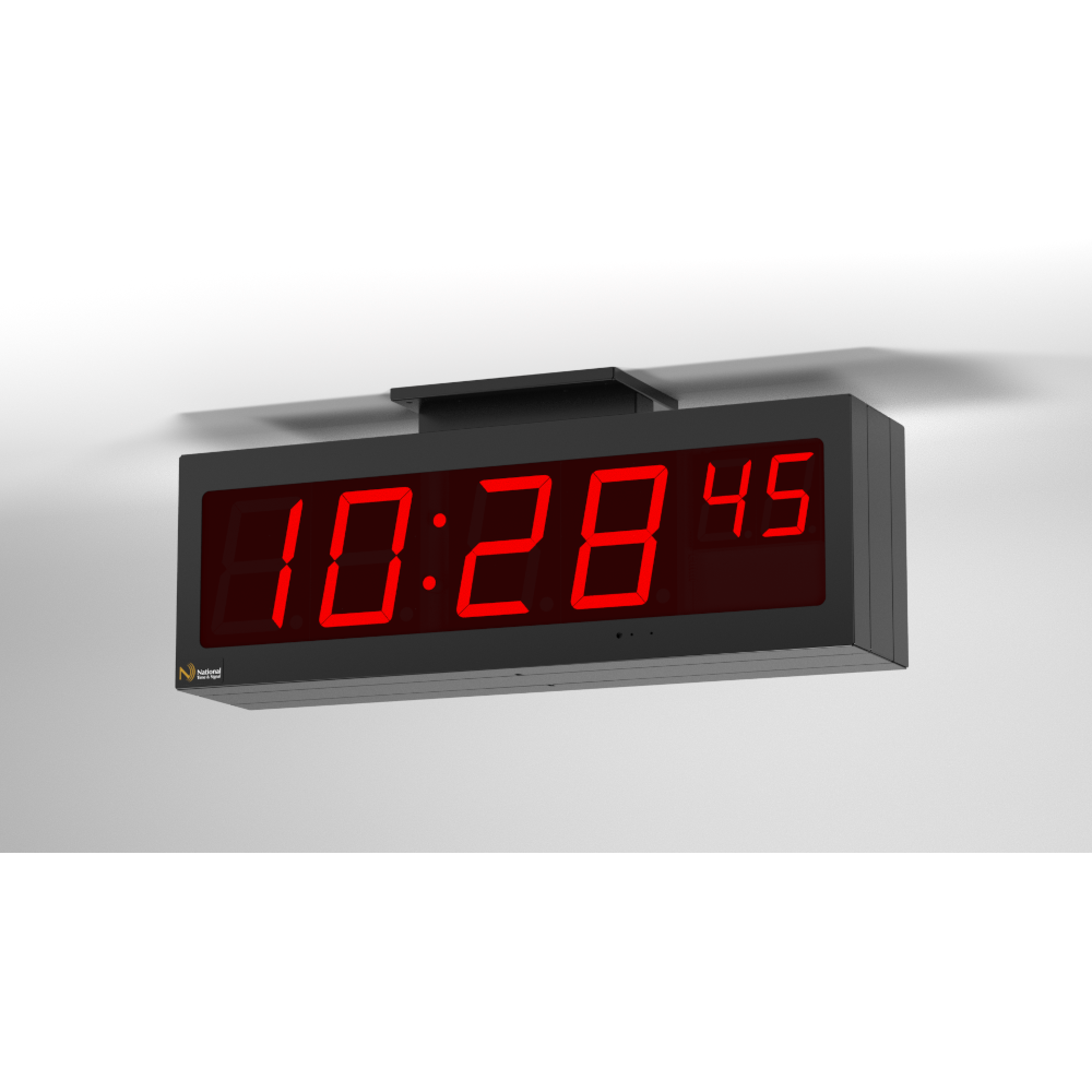

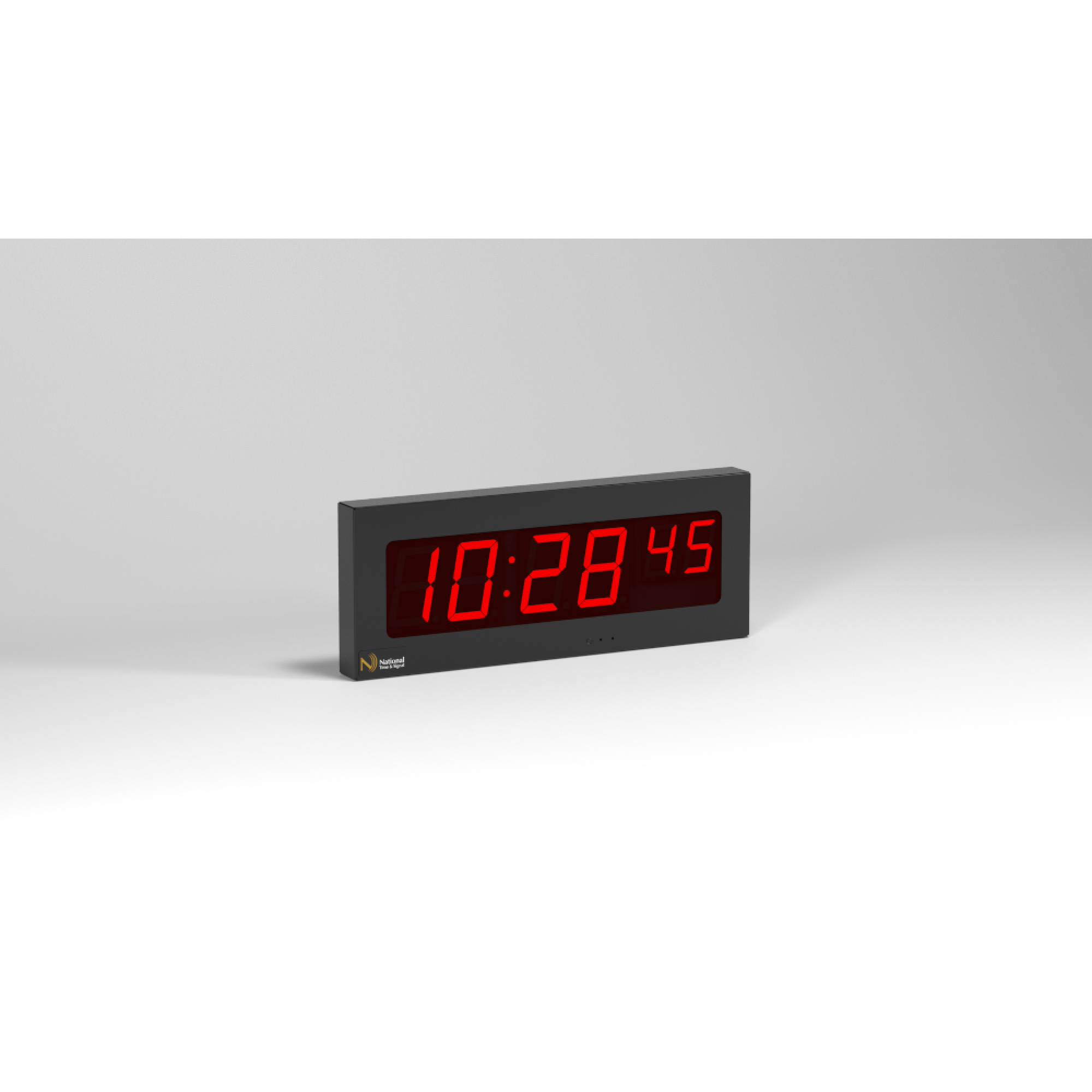

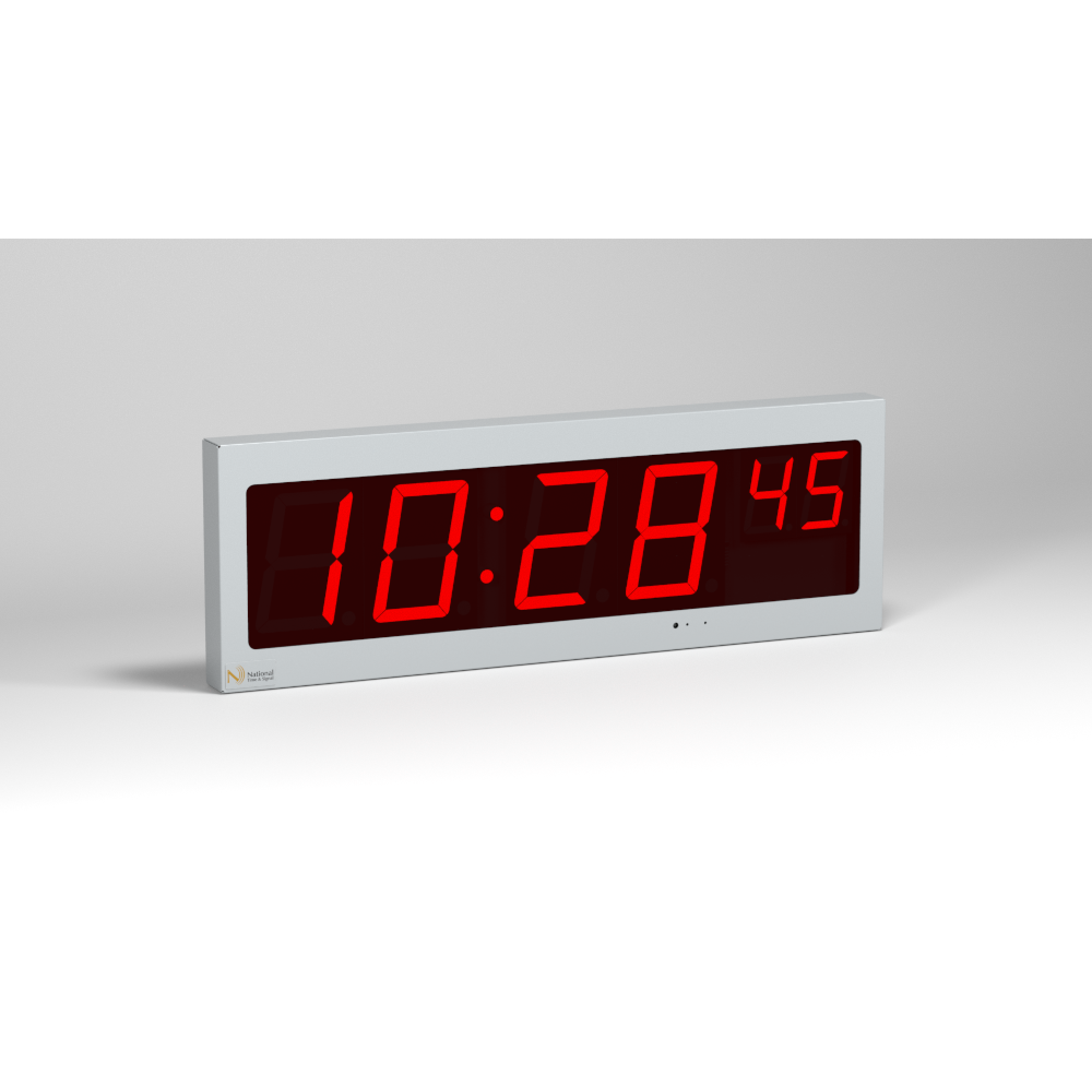

Units can be powered by either 24VAC or 24VDC and have attractive 4" or 2.25" high visibility, wide-bar digits. 6-Digit versions also available, see DLX225-6 and DLX400-6. Compatible with 120VAC powered systems when the appropriate 24VAC transformer is mounted at each clock or double face unit. The durable steel housing, plug-in connectors and universal mounting plate simplify installation. An optional low profile surface box allows for surface mounted conduit entry. Powder gray finish standard, black and other colors upon request.
